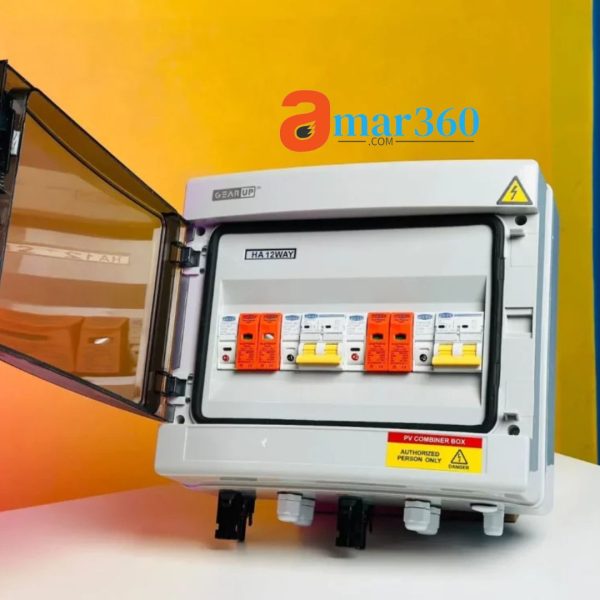

GearUP 12-Way DC Solar PV Combiner Box – 2 Strings Dual MPPT – Best Price in Bangladesh

Buy the GearUP 12-Way 2 Strings DC Solar PV Combiner Box online in Bangladesh at Amar360.com. This professional dual-string combiner box safely manages up to 12 solar panels (6 per string) with built-in MCB, fuse, and surge protection – perfect for dual MPPT inverter systems and medium-scale solar installations.

Why Choose GearUP 12-Way Solar Combiner Box in Bangladesh?

Optimize your dual MPPT solar system with professional-grade protection and organization. This 12-way combiner box is specifically designed for Bangladesh’s growing solar market, providing reliable protection against monsoon weather, power surges, and electrical faults while maximizing system efficiency with dual-string configuration.

Key Features & Benefits

⚡ Dual String Configuration Manages 12 solar panels in 2 independent strings (6 panels each), perfect for dual MPPT inverters and optimized power generation with different panel orientations or shading conditions.

🛡️ Triple Layer Protection System

• 63A MCB: High-capacity circuit breaker for overcurrent protection
• 30A DC Fuses: Individual string protection for each circuit
• Type II SPD: Advanced surge protection against lightning and grid disturbances

🌧️ IP65 Weather Protection Premium waterproof enclosure withstands Bangladesh’s harsh monsoon seasons, high humidity, UV radiation, and temperature extremes from -25°C to +60°C.

🔌 Dual MPPT Compatibility Designed for modern dual MPPT inverters including Growatt, Deye, SMA, Solis, and other popular brands available in Bangladesh’s solar market.

🏗️ Professional Installation Ready Pre-wired terminals, labeled connections, internal DIN rail mounting, and UV-resistant cable glands ensure clean, professional installations.

📊 Enhanced System Monitoring Dual string configuration allows independent monitoring and optimization of each string for maximum power harvest and easy fault detection.

Perfect for Bangladesh Solar Applications

Medium-Scale Residential Systems

• 5kW – 10kW home installations with dual MPPT inverters
• Rooftop systems with different panel orientations (East/West, multiple roof sections)
• Net metering setups compliant with BSTI and SREDA requirements

Small Commercial Projects

• Shop and office rooftops with limited space requiring dual string optimization
• Agricultural facilities with dual-orientation panel mounting
• Educational institutions and community solar projects

Hybrid and Off-Grid Systems

• Battery backup systems with dual charge controllers
• Remote area electrification projects requiring reliable protection
• Telecom tower backup power with redundant string configuration

Technical Specifications

Specification	Details
Model	GearUP 12-Way 2-String DC PV Combiner Box

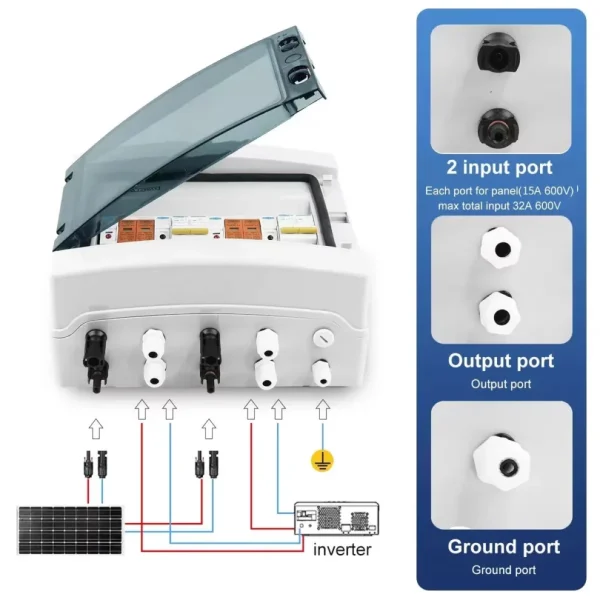

String Configuration	2 inputs (6 panels each), 2 outputs
Panel Capacity	Up to 12 panels total (600W+ panels supported)
DC Voltage Rating	600V DC maximum
Current Rating	30A per string, 63A main MCB
Protection Components
– Main MCB	63A, 2-pole DC circuit breaker
– String Fuses	30A DC fuses for each string
– SPD	Type II DC surge protection device
Enclosure Specifications
– IP Rating	IP65 (complete dust/water protection)
– Material	Fire-retardant ABS/Polycarbonate
– UV Resistance	Yes, suitable for outdoor installation
– Temperature Range	-25°C to +60°C operational
Installation Features
– Mounting	Wall mount or pole mount options
– Cable Entry	UV-resistant PG cable glands
– Internal Design	DIN rail mounted components
– Wiring	Pre-wired with labeled terminals

Dual MPPT System Advantages

Why Choose Dual String Configuration:

✅ Maximum Power Harvest

• Different panel orientations optimized independently
• Reduced shading impact on overall system performance
• Better power generation during partial cloud cover

✅ System Flexibility

• Mix different panel types or wattages per string
• Future expansion capability with independent strings
• Optimal inverter utilization with dual MPPT inputs

✅ Enhanced Monitoring

• Individual string performance tracking
• Easy fault identification and troubleshooting
• Maintenance scheduling based on string performance

✅ Redundancy and Reliability

• System continues operating even if one string fails
• Independent protection for each string
• Reduced downtime and maintenance costs

Compatible Inverter Brands

Popular Dual MPPT Inverters in Bangladesh:

• Growatt: MIN series, MIC series
• Deye: SUN-G3 series, Hybrid series
• SMA: Sunny Boy, Sunny Tripower
• Solis: 1P/3P series with dual MPPT
• Huawei: SUN series residential inverters
• Fronius: Galvo, Symo series

Installation Applications

Residential Dual String Scenarios:

• East-West roof orientations: Optimize morning and evening generation
• Multi-roof installations: Different roof sections with independent strings
• Shading mitigation: Separate shaded and unshaded panel groups
• Future expansion: Start with one string, add second string later

Commercial Applications:

• Factory rooftops: Large areas with structural considerations
• Warehouse installations: Different roof sections or orientations
• Agricultural buildings: Optimize for different seasonal sun paths
• Educational facilities: Demonstrate dual MPPT technology benefits

Why This Combiner Box is Essential

✅ Advanced System Protection Comprehensive protection suite prevents costly damage to panels, inverters, and electrical infrastructure from faults and surges.

✅ Code Compliance Meets international electrical safety standards required for professional solar installations and insurance coverage in Bangladesh.

✅ Professional System Design Dual string capability enables sophisticated system designs that maximize power generation and system reliability.

✅ Weather Resilience IP65 rating ensures reliable operation through Bangladesh’s challenging weather conditions including monsoons and extreme temperatures.

✅ Cost-Effective Solution Integrated protection components and pre-wired design reduce installation time and total system costs compared to separate components.

Why Buy from Amar360.com?

✅ Authentic GearUP Products – Original manufacturer with full warranty coverage
✅ Competitive Bangladesh Pricing – Best value for professional solar components
✅ Technical Engineering Support – Expert guidance for dual MPPT system design
✅ Fast Nationwide Delivery – Express shipping across all districts
✅ Professional Installation Network – Certified solar installers available
✅ Secure Payment Options – bKash, Nagad, bank transfer, and COD accepted

Complete Solar System Solutions

Recommended System Components:

• Dual MPPT solar inverters (5kW-10kW range)
• High-efficiency solar panels (540W+ monocrystalline)
• DC/AC solar cables and MC4 connectors
• Solar panel mounting systems and rails
• Solar monitoring systems for dual string tracking

Professional Services:

• Dual MPPT system design and engineering
• Professional installation and commissioning
• System performance optimization
• Annual maintenance and monitoring services

Order Your 12-Way Combiner Box Today

Maximize your solar investment with the GearUP 12-Way 2-String DC Solar PV Combiner Box. Essential for professional dual MPPT solar installations in Bangladesh.

Available for delivery in: Dhaka, Chittagong, Sylhet, Rajshahi, Khulna, Barisal, Rangpur, Mymensingh, and all districts across Bangladesh.



---

Frequently Asked Questions (FAQ)

Dual String System Design

Q: What’s the advantage of dual string design over single string? A: Key benefits include:

• Independent optimization: Each string can have different panel orientations
• Shading tolerance: Shading on one string doesn’t affect the other
• Future expansion: Add panels to one string without affecting the other
• Better monitoring: Track performance of each string separately
• Higher reliability: System continues working if one string fails

Q: Can I use different wattage panels on each string?

A: Yes, with dual MPPT inverters, each string can have different panel types, wattages, or orientations. The MPPT controllers optimize each string independently.

Q: How many panels should I put on each string?

A: Typically 6 panels per string as designed, but depends on:

• Panel voltage and inverter MPPT voltage range
• Total system wattage requirements
• Roof space and layout constraints
• Shading and orientation considerations

Q: Is this suitable for East-West roof orientations?

A: Perfect! Put East-facing panels on one string and West-facing on another. Each MPPT controller will optimize for different sun conditions throughout the day.

Technical Specifications & Compatibility

Q: What’s the maximum panel wattage this can handle?

A: With 30A per string rating, it can handle:

• 540W+ panels: Up to 6 panels per string safely
• 600W+ panels: Perfect for modern high-efficiency panels
• Total system capacity up to 7.2kW (12 × 600W panels)

Q: Is 600V DC rating sufficient for large panels?

A: Yes, for most residential installations:

• 6 × 540W panels ≈ 300V (well within 600V limit)
• Suitable for 99% of residential and small commercial systems
• For higher voltages, consider the 1000V version

Q: Which dual MPPT inverters work best with this?

A: Recommended brands available in Bangladesh:

• Growatt MIC/MIN series: Excellent compatibility and monitoring
• Deye SUN series: Cost-effective with good performance
• Solis 1P series: Reliable with comprehensive monitoring
• Huawei SUN series: Advanced monitoring and optimization

Q: Can I monitor each string’s performance separately?

A: Yes, with compatible dual MPPT inverters you can:

• View individual string voltage, current, and power
• Set alerts for string performance issues
• Compare string performance to identify problems
• Optimize maintenance based on string data

Installation & Setup

Q: Do I need a professional electrician for installation?

A: Yes, professional installation is strongly recommended because:

• High DC voltages require proper safety procedures
• Local electrical codes must be followed
• Proper grounding and bonding is critical
• Warranty may require certified installation

Q: Can this be installed during monsoon season?

A: While the IP65 rating allows it, best practices recommend:

• Install during dry weather when possible
• Ensure all cable glands are properly sealed
• Allow proper curing time for sealants
• Test all connections before exposing to weather

Q: What additional components do I need?

A: For complete installation:

• DC cables: Properly sized for 30A per string
• MC4 connectors: For panel connections
• Grounding equipment: For electrical safety
• Mounting hardware: Appropriate for installation surface
• Labels and documentation: For code compliance

Q: How do I size the cables from combiner to inverter?

A: Cable sizing considerations:

• Current capacity: Must handle 30A per string safely
• Voltage drop: Keep under 2% for efficiency
• Distance: Longer runs need larger cables
• Environmental factors: UV resistance for outdoor runs

Protection & Safety Features

Q: How does the Type II SPD protect my system?

A: The SPD protects against:

• Lightning surges: Both direct and indirect strikes
• Grid switching surges: From utility operations
• Inverter switching: Internal inverter transients
• Inductive loads: From nearby motors and transformers

Q: What happens if one string fails?

A: System benefits from redundancy:

• Continued operation: Other string keeps producing power
• Easy identification: Monitoring shows which string failed
• Safe isolation: MCB allows safe disconnection for repairs
• Minimal downtime: Fix one string while other operates

Q: How often should I inspect the combiner box?

A: Recommended inspection schedule:

• Monthly: Visual check of indicator lights and connections
• Quarterly: Open and inspect for corrosion or damage
• Annually: Professional inspection and testing
• After storms: Check for surge damage or water ingress

Q: What are signs of SPD activation?

A: Indicators that SPD has operated:

• Visual indicators: Many SPDs have status windows
• System monitoring: Inverter may show surge events
• Performance changes: Sudden system performance issues
• Physical inspection: Signs of SPD component activation

Business & Commercial Use

Q: Is this suitable for commercial solar installations? A: Yes, excellent for small-medium commercial applications:

• Shop rooftops: 5-10kW systems with dual orientations
• Warehouses: Systems requiring flexible string configuration
• Agricultural facilities: Dual string optimization for seasonal needs
• Educational institutions: Demonstration of dual MPPT benefits

Q: Can I use multiple combiner boxes for larger systems? A: Absolutely! For larger installations:

• Parallel installation: Multiple combiner boxes to single inverter
• Series expansion: Combine multiple dual-string systems
• Modular growth: Add combiner boxes as system expands
• Redundancy: Multiple protection points for large arrays

Q: What’s the warranty coverage for commercial use? A: Commercial warranty includes:

• 2 years: Full replacement warranty on all components
• 5 years: Enclosure and mechanical components
• Professional support: Technical assistance for troubleshooting
• Installation support: Guidance for certified installers

---



Professional Installation Services: We partner with certified solar installers across Bangladesh for complete turnkey installations including system design, component selection, and commissioning.
